| Brand Name: | BZIDA |
| MOQ: | 50 meters |
| Payment Terms: | 30% prepayment, full payment upon delivery |
| Supply Ability: | 3000 meters per month |

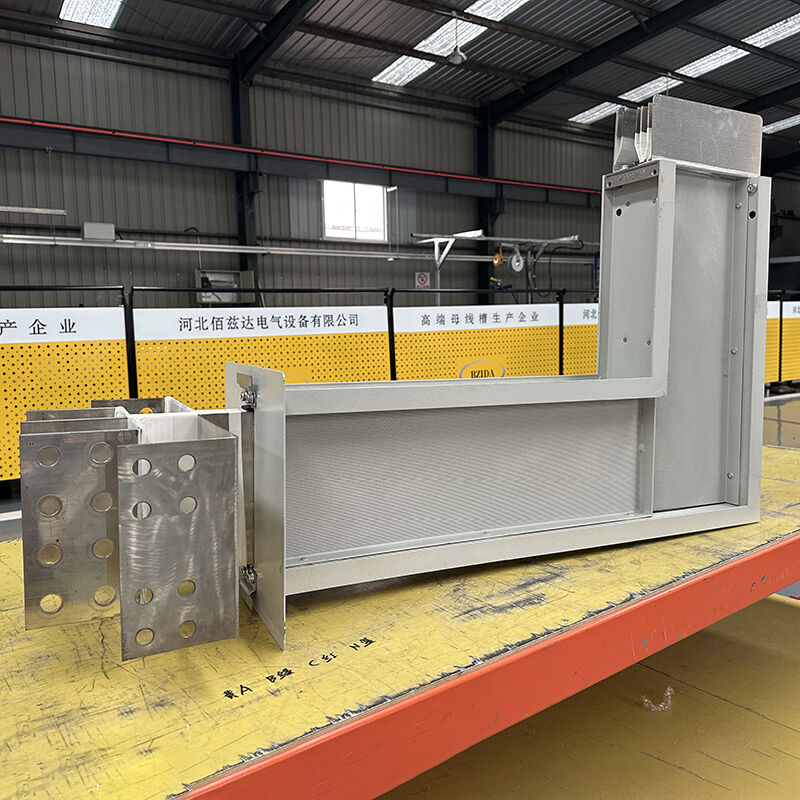

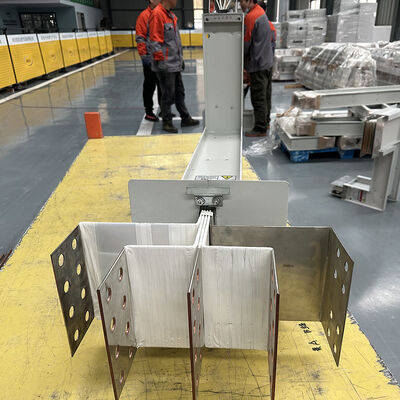

Internal composition of dense bus duct:
1. Conductive busbar: This is the main body of current transmission, usually made of high conductivity copper or aluminum materials, and the surface is plated with tin or other anti-corrosion treatments to enhance corrosion resistance.
2. Insulation material: wrapped around the conductive outer layer, is the key to ensuring electrical safety. Common methods include polyester film, polyvinyl chloride sleeve, or the use of epoxy resin powder coating as a whole to form a sturdy insulation layer.
3. Shell: Usually made of high-quality aluminum magnesium alloy or steel plate, it plays a role in mechanical protection, supporting internal structures, heat dissipation, and grounding.
4. Joint component: a component used to connect two sections of bus ducts, which is a concentrated manifestation of technical content. Usually includes insulation partitions, high-strength insulation bolts, and possible torque control techniques to ensure reliable connections and low contact resistance.
5. Plug in device and plug box: Plug in devices can be installed at specific positions on the busbar trunking, and electrical energy can be led to terminal equipment through the plug box, with flexible operation.
6. Fixed and supporting components: including spring supports, brackets, etc., used to firmly install the busbar trunking system on the building structure and compensate for length changes caused by thermal expansion and contraction.
7. Attachments: such as end caps, variable capacity joints, expansion joints, installation hangers, etc., used to improve system functionality and adapt to different installation environments.
1. The bus duct adopts a rectangular conductor structure and achieves higher current carrying capacity per unit cross-sectional area through optimized cross-sectional design. Compared to traditional cables, its conductor heat dissipation efficiency is improved by more than 30%. At a rated current of 4000A (common specification), the temperature rise is controlled within a reasonable range, effectively reducing electrical energy loss.
2. The enclosure of the bus duct is usually designed with an IP65 protection level, which can completely prevent dust intrusion and low-pressure water jet. It is suitable for humid, dusty or chemically corrosive environments (such as hospital operating rooms and chemical workshops). Its insulation voltage reaches 660V, and with the tin plating process, it further enhances the corrosion resistance of the conductor and extends its service life.
3. The bus duct supports hanging installation method, which achieves fast splicing through standard connectors, and the installation efficiency is increased by more than 50% compared to cable wiring. Its external dimensions and cross-sectional form can be customized according to site requirements, adapting to complex spatial layouts such as data center cabinet arrangement and commercial complex floor power distribution.
1.Are you a trade company or a manufacturer?
Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.
2.What are the main products of your company?
Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.
3.How do you ensure the quality of your products?
We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.
4.Do you offer customization services?
Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.
5.Can you print our brand on the product?
Yes, of course, we also do OEM to print client’s brand on the product
