High Low Voltage Fireproof 1000A 1250A Aluminium Busbar Channel Waterproof Casting

High Low Voltage Fireproof 1000A 1250A Aluminium Busbar Channel Waterproof Casting

Brand Name: BZIDA
MOQ: 50 meters
Payment Terms: 30% prepayment, full payment upon delivery
Supply Ability: 3000 meters per month
Detail Information
Place of Origin:
Langfang, Hebei, China
Certification:
ISO9001
Rated Current:
200 - 6300 A
Application:
Outdoor, Industrial, Electric Power Transmission
Surface Treatment:
Housing Aluminum Alloy/conductor TMY Copper
Frequency:
50-60Hz
Degree Of Protection:
IP54/IP66
Rated Voltage:
690 V, 1000V
Working Temperature:
-40℃~+80℃
Rated Frequency:
50Hz--60Hz
Packaging Details:
Export standard compliant
Highlight:

1250a aluminium busbar

,

fireproof busway busbar

,

fireproof aluminium busbar

Product Description

High-Low Voltage Fireproof 1000A 1250A Aluminium Busbar Channel Waterproof Casting Product Busway






Product Description:



Busbar trunking uses copper bars or aluminum as conductors, with a large current capacity and good electrical and mechanical properties. In addition, metal trunking is used as the shell, which has the advantages of non combustion, high safety and reliability, and long service life. Compared with traditional power distribution, the equipment occupies a significantly reduced area and has a beautiful appearance, which is very advantageous for the construction and power distribution of large buildings.

In summary, bus ducts have the following characteristics: 1. The current capacity can be very large; 2. The voltage drop is very small; 3. Strong short-circuit load capacity; 4. High reliability and long service life; 5. High safety; 6. The equipment of the power distribution system can be added or changed freely; 7. Small external dimensions; 8. Lightweight and easy to operate; 9. The connection is very simple (just like connecting water pipes, connecting them into a system through tees, elbows, and other joints) as shown in the following figure; 10. Simple construction and inspection; 11. It has a modern aesthetic.







Features:



1. Bus ducts use copper or aluminum as conductors, which have extremely high conductivity and can efficiently transmit large currents, meeting the needs of large-scale power transmission.



2. The bus duct has a compact structure and small volume, which can provide higher transmission capacity in limited space. Greatly saving installation space and reducing the cost of electrical engineering.



3. The maintenance of bus ducts is relatively simple and convenient. The connection part adopts bolt fastening or plug-in design, which is easy to disassemble and replace.









Technical Parameters:



Implementation Standard
IEC/EN 60 439-6, GB7251.1
System
Three-phase three-wire, Three-phase four-wire, Three-phase five-wire (with separate PE busbar), Three-phase five-wire (with casing
as PE)
Rated Insulation Voltage (Ui)
AC/ DC 1000V/800V
Rated Operating Voltage (Ue)
AC1000V/690V
Rated Frequency
50/60Hz
Enclosure Material/Surface Treatment
Aluminum Alloy / Powder Coating
Conductor Material
Tin-Plated Copper or/Tin-Plated Copper-Clad Aluminum/Aluminum
Voltage Category / Pollution Degree
III/3
Horizontal Mounting Spacing
≤ 2m

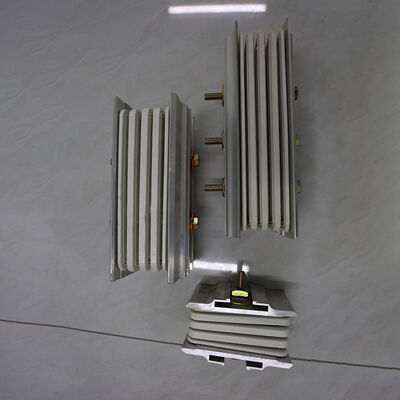

High Low Voltage Fireproof 1000A 1250A Aluminium Busbar Channel Waterproof Casting 0

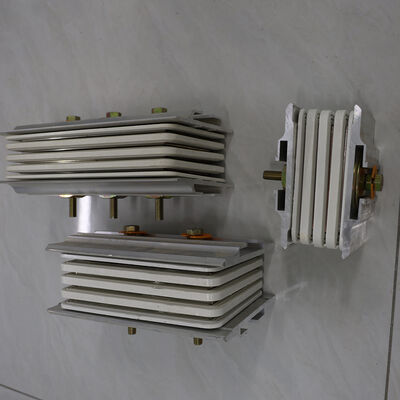

High Low Voltage Fireproof 1000A 1250A Aluminium Busbar Channel Waterproof Casting 1



High Low Voltage Fireproof 1000A 1250A Aluminium Busbar Channel Waterproof Casting 2
